Exploded-View Wall System Animation for an Insulated Backer Board
A US video production studio needed a product film for an insulated backer board that replaces several layers of a traditional stucco wall. We modelled both wall systems and animated them in an exploded view, from bare sheathing to the finished wall.
Client & Market Context
A Video Studio Explaining a Simpler Wall System
Our client is a US video production studio making a product film for a building products manufacturer. The film had to present a new insulated backer board as a simpler alternative to the traditional multi-layer stucco wall, and the studio needed a wall system animation that builders and architects would understand at a glance.
Making the Layers Inside a Wall Visible
The main challenge of exploded-view animation for a wall product is that every layer disappears once the wall is built. The comparison only works if each layer is shown clearly and in the right order, so the film had to answer four questions.
Visual Results
The Finished Wall System Animation and Stills

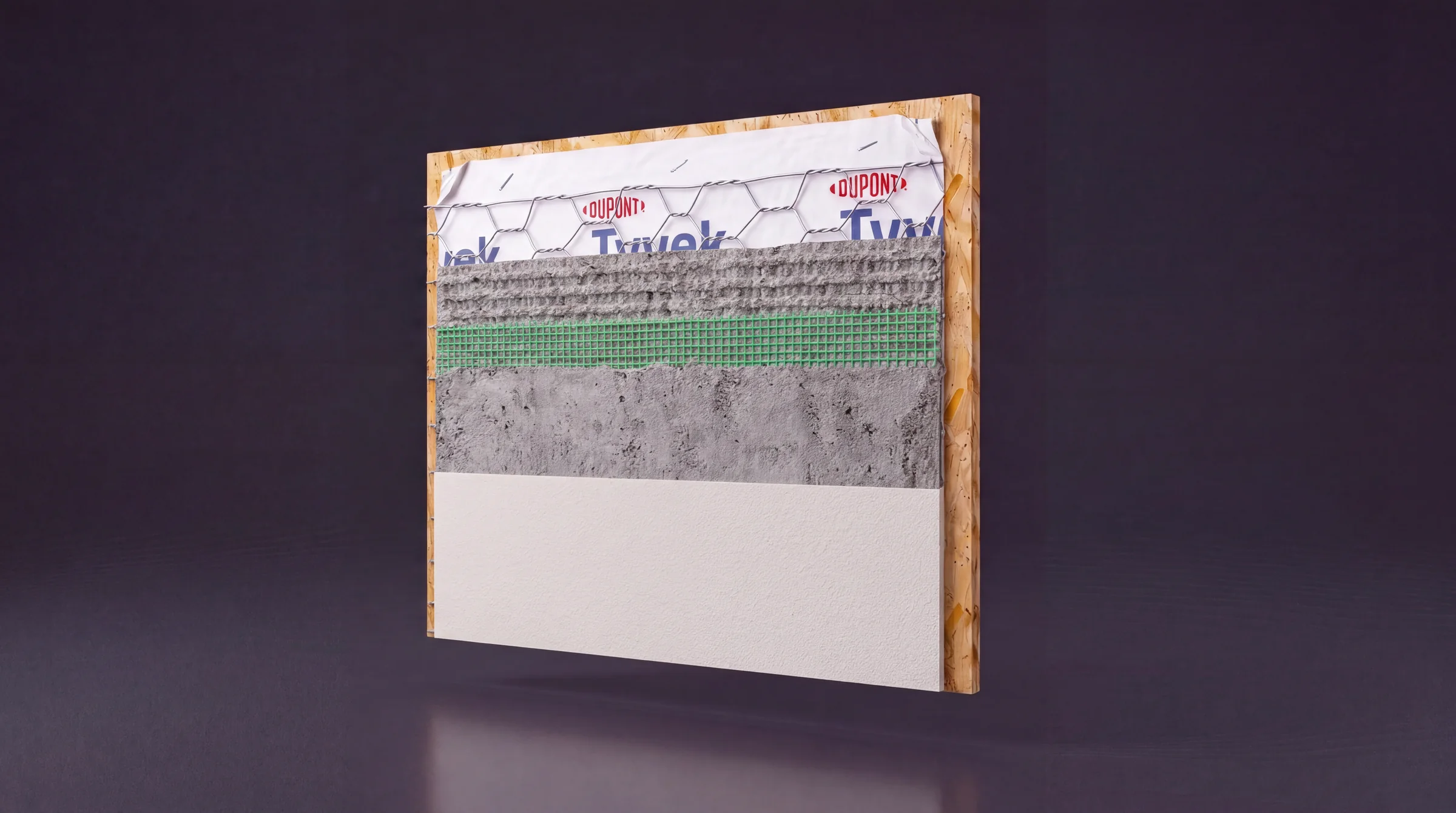

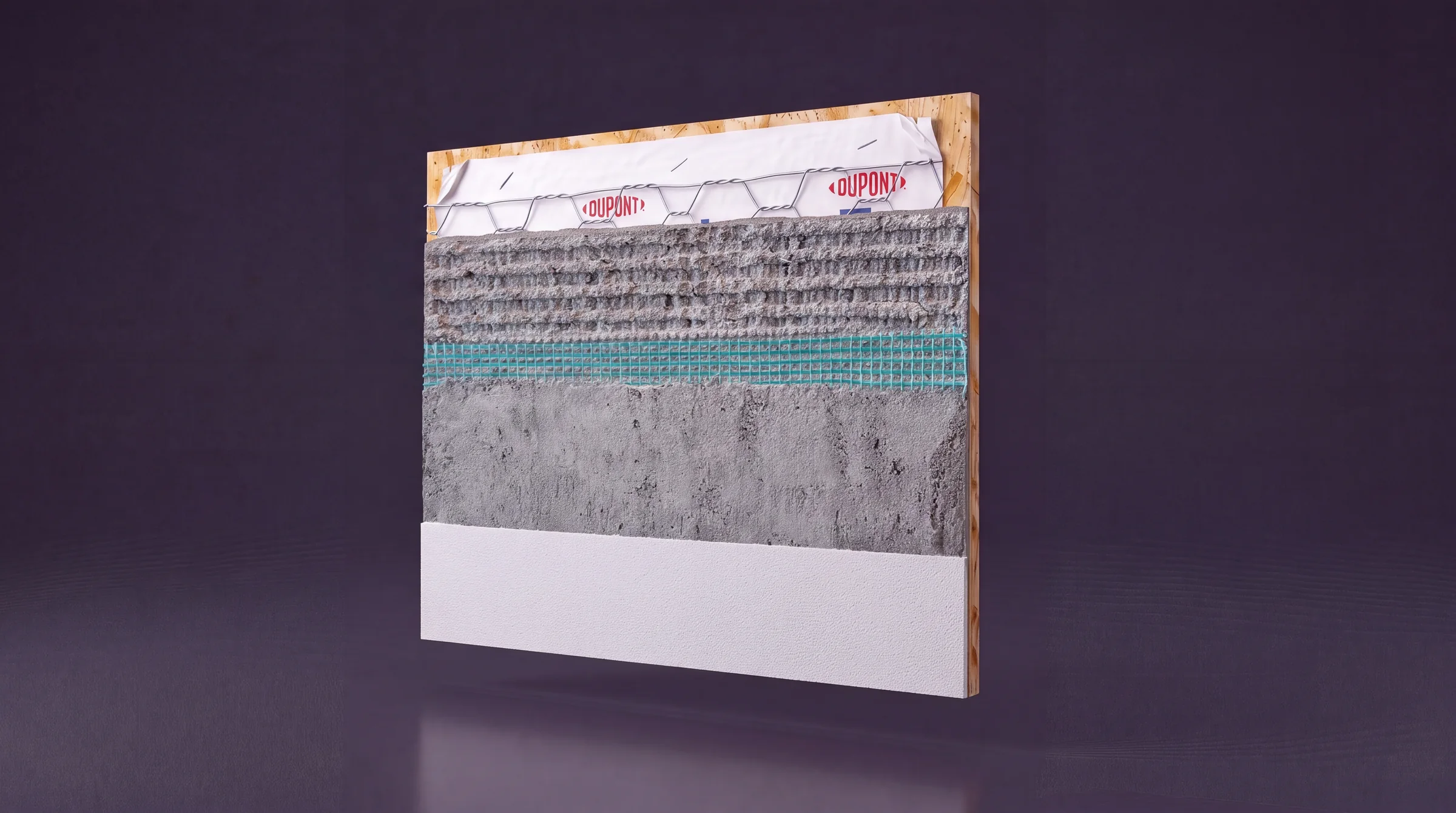

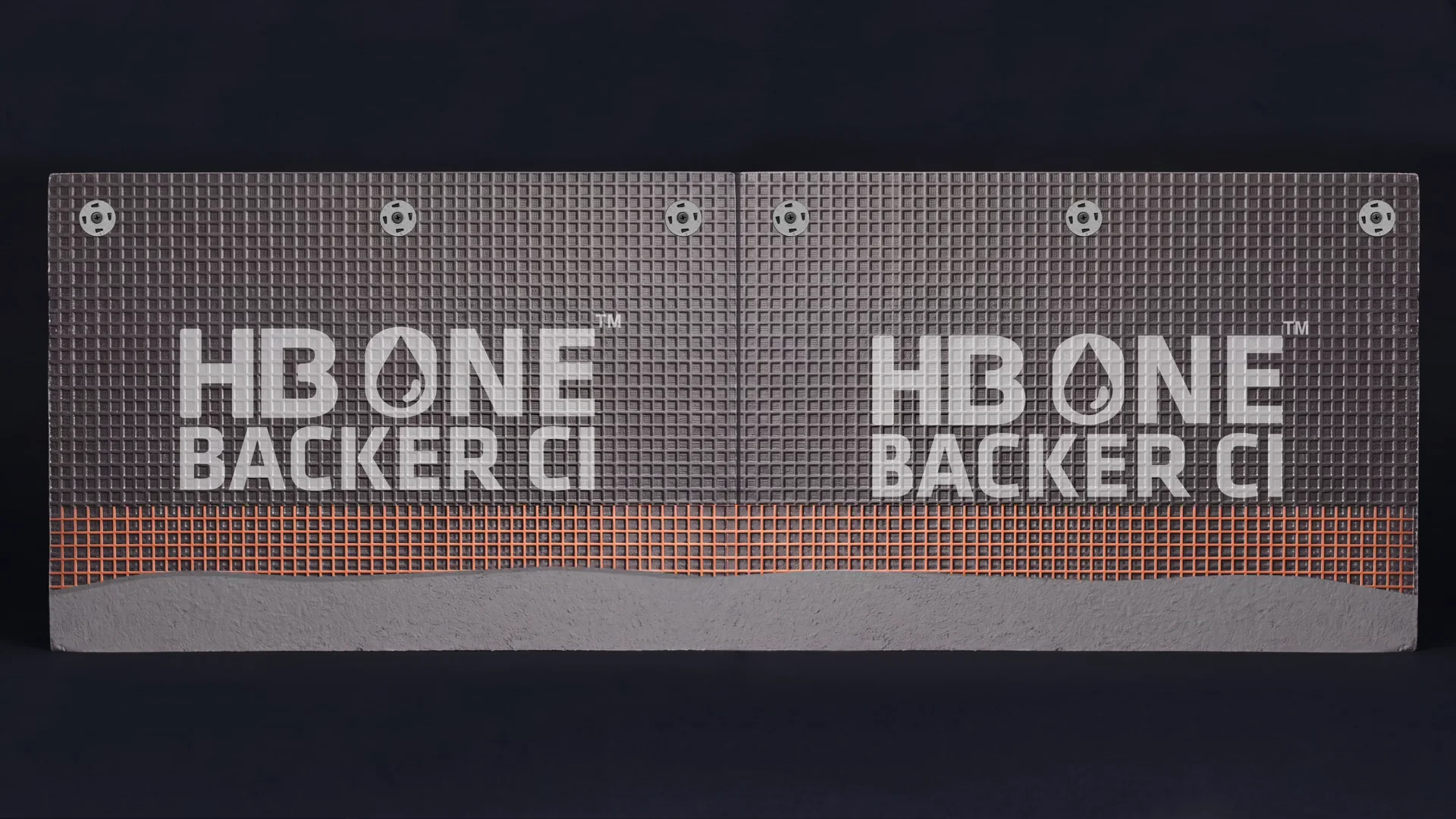

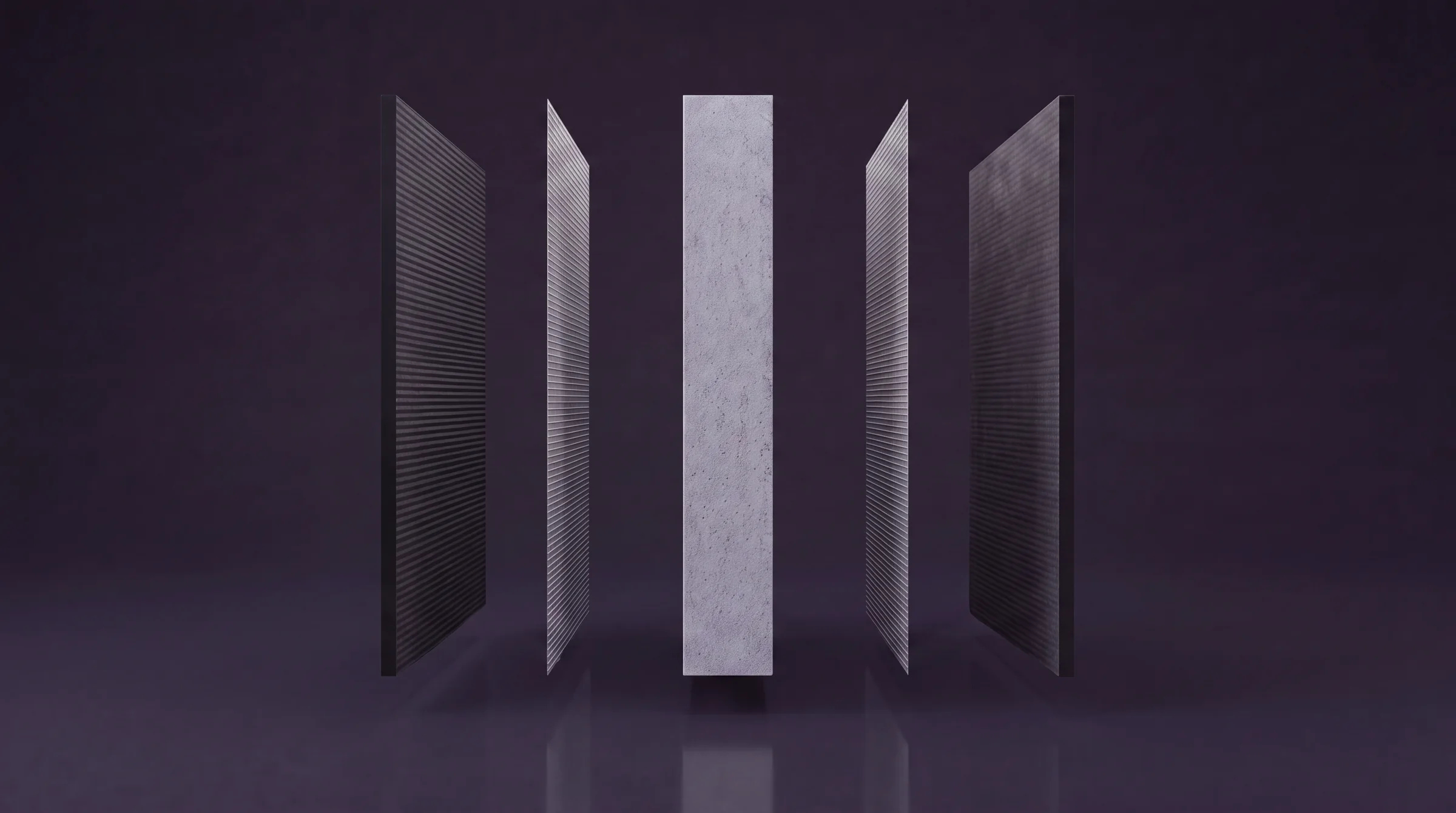

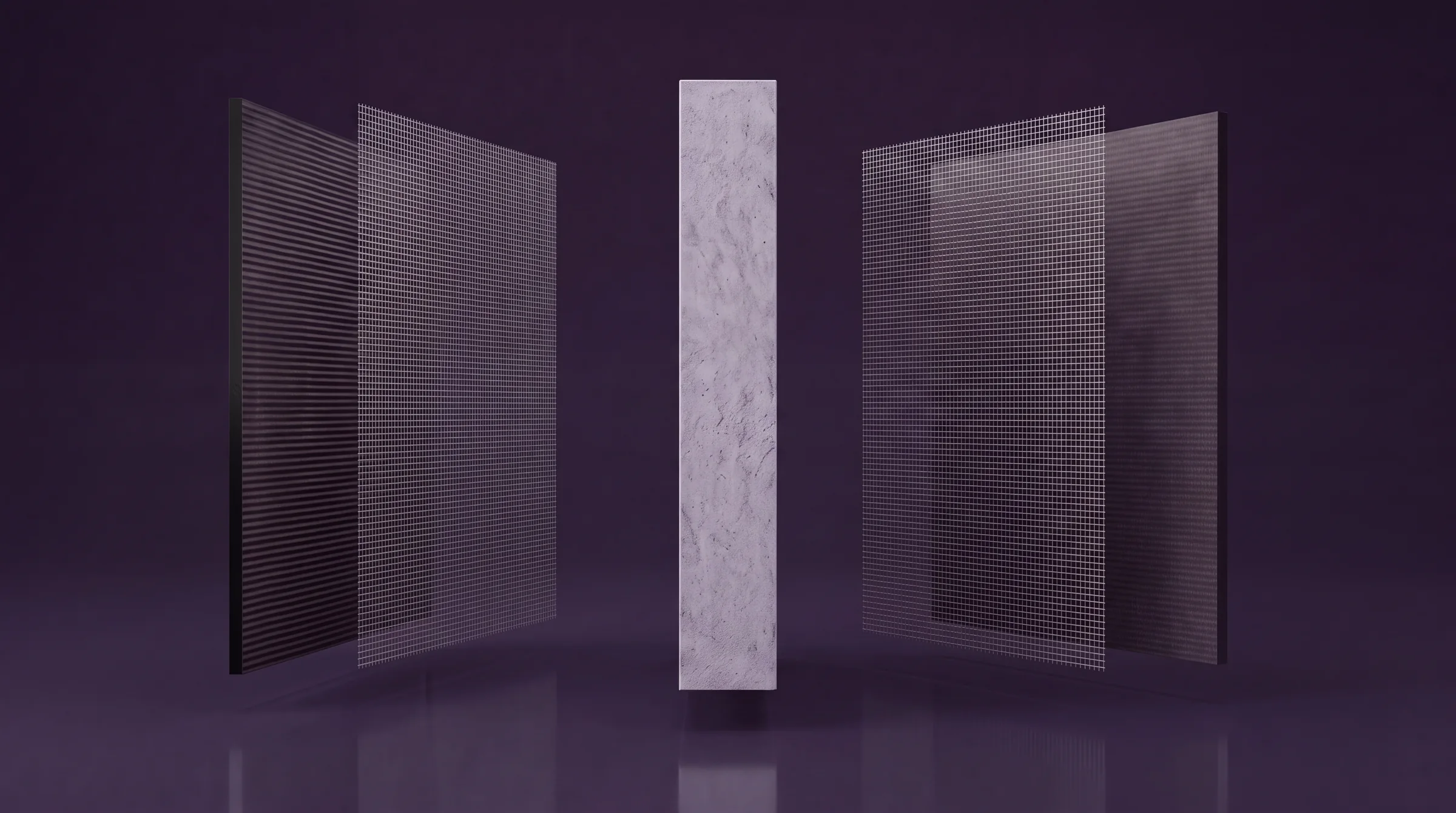

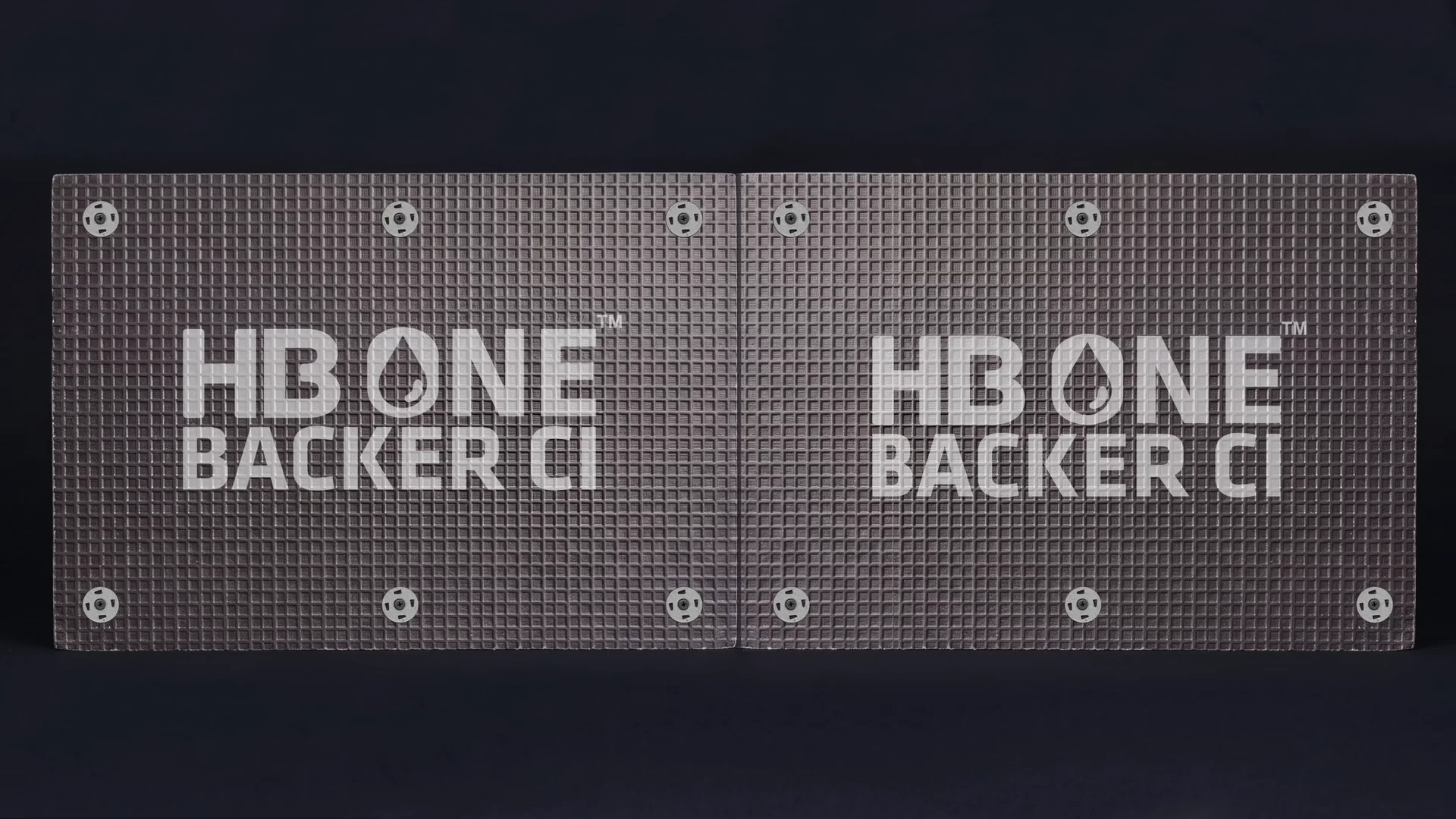

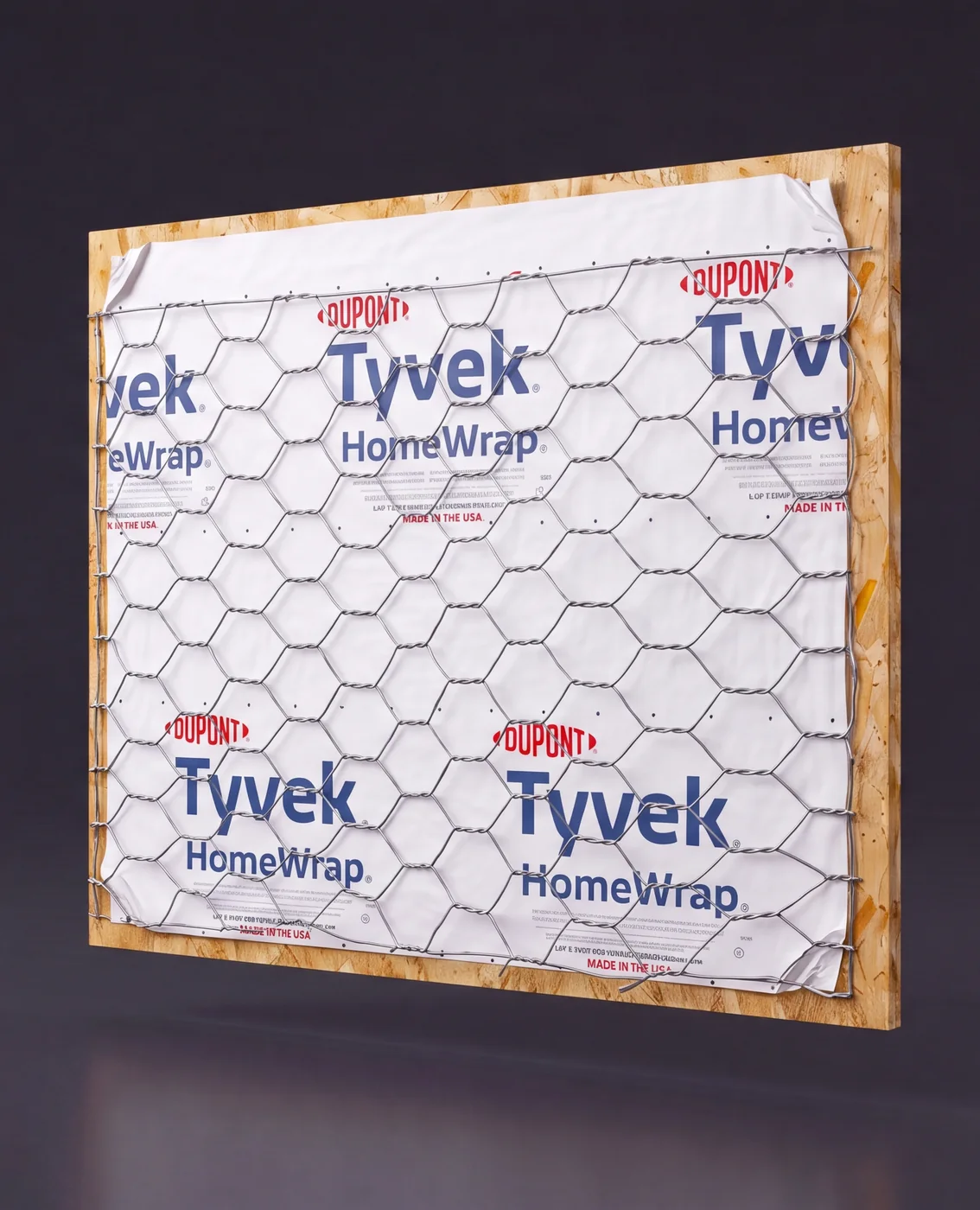

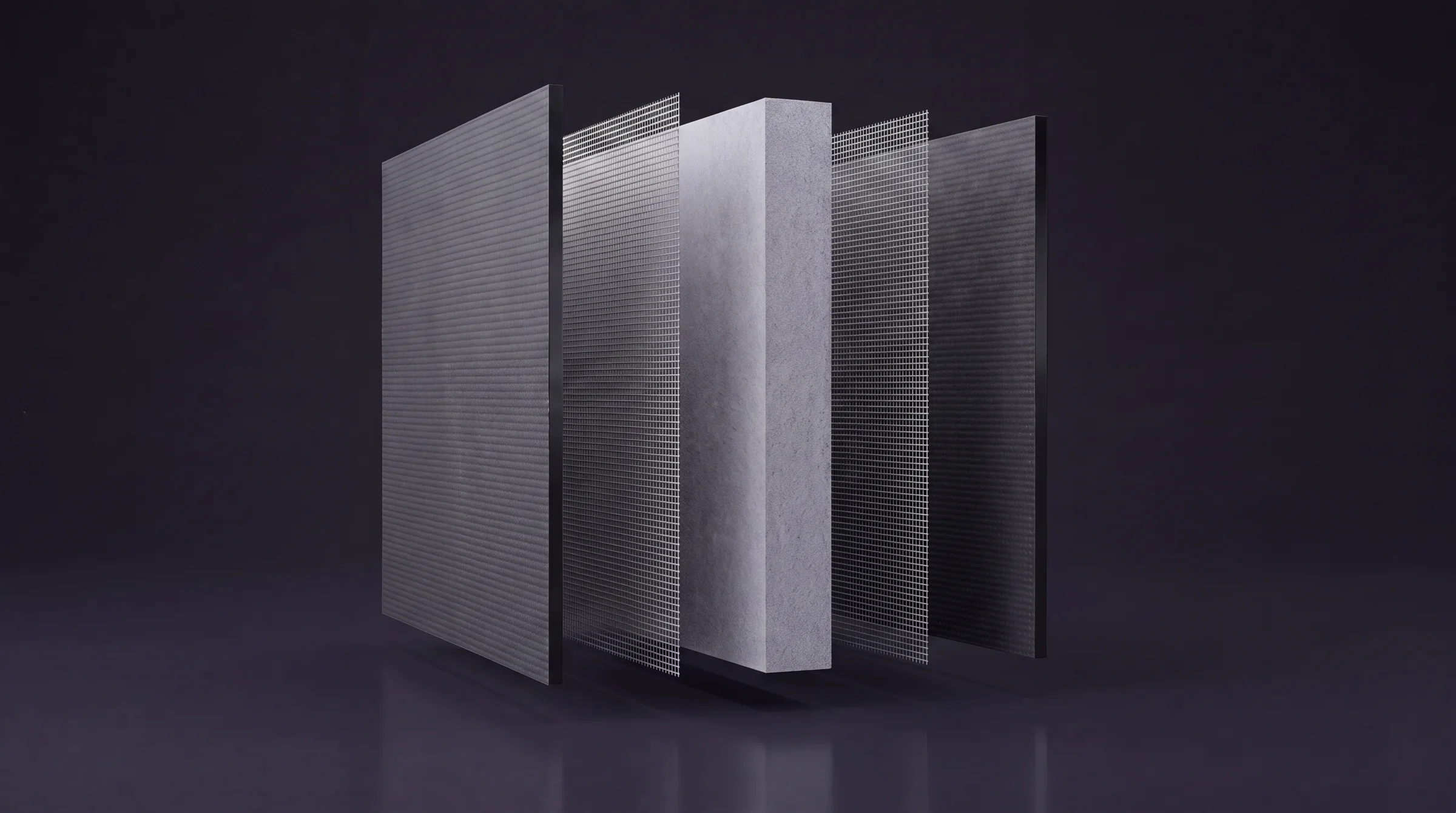

The set follows the film: the traditional wall coat by coat, the board pulled apart and put back together, then the installation from the first fastener to the finish coat.
